Reavell High-Pressure Air Compressor
Model
5404 | 5405 | 5437 | 5450 | 5460 | 5470 |...
The Reavell 5400 Series is a range of compact, multi-stage high-pressure air compressors engineered for reliable and continuous operation in demanding industrial environments. Designed with robust construction, efficient air-cooling, and long service intervals, the 5400 Series delivers stable compressed air from 85 bar(g) to 350 bar(g) across various models, making it suitable for applications requiring precision and durability.
Product Details
FEATURES

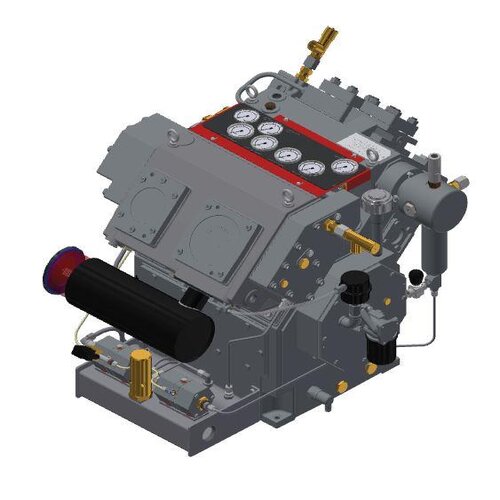

High-pressure reciprocating compressor
• High efficiency and compact design
• Plug-and-play installation
• Speeds up to 1800 rpm
• Built-in cooling systems
• Ideal for laser cutting, component testing, CNG refilling, and gas storage and more
SPECIFICATION
Specification Overview
- Compressor Type: High-pressure reciprocating, 3/4-stage
- Pressure Range: 85 – 350 bar(g)
- Flow Rate (FAD): 5 – 30+ m³/hr depending on model
- Cooling Method: Air-cooled
- Lubrication: Lubricated design
- Motor Power: 3–15 kW (model-dependent)
- Drive Options: Direct drive / V-belt drive
- Construction: Heavy-duty cast design for long operation
- Applications: Industrial, marine, defense, testing, gas storage, breathing air systems.
| Model | Max Delivery Pressure | Max Flow Rate | Lubrication | Cooling | Best for |
| 5404 | Up to 350 Barg | 8 M³ /Hr | Lubricated | Air | Small-scale gas storage, Component testing |
| 5405 | Up to 350 Barg | 11 M³ /Hr | Lubricated | Air | Laser cutting systems, Small CNG stations |
| 5405e | Up to 350 Barg | 17 M³ /Hr | Lubricated | Air | Energy-efficient operations, OEM integrations |
| 5407 | Up to 414 Barg | 27 M³ /Hr | Lubricated | Air | Medium-sized gas storage, Industrial testing labs |
| 5409 | Up to 414 Barg | 44 M³ /Hr | Lubricated | Air | CNG vehicle refueling, Laser cutting with high duty cycles |
| 5417 | Up to 350 Barg | 68 M³ /Hr | Lubricated | Water | High-volume gas compression, Process gas systems |
| 5420 | Up to 350 Barg | 84 M³ /Hr | Lubricated | Water | Gas recovery systems, Advanced manufacturing |
| 5437 | Up to 414 Barg | 159 M³ /Hr | Lubricated | Water | Large-scale CNG stations, Energy sector applications |
| 5442 | Up to 350 Barg | 280 M³ /Hr | Lubricated | Water | Hydrogen or helium compression, Specialty gas systems |
| 5450 | Up to 414 Barg | 850 M³ /Hr | Lubricated | Air | ndustrial gas networks, Continuous duty operations |
| 5460 | Up to 414 Barg | 1500 M³ /Hr | Lubricated | Water | Gas pipeline boosting, Large autoclaves |
| 5470 | Up to 414 Barg | 1128 M³ /Hr | Lubricated | Air | Mission-critical gas compression, Custom-engineered systems |
