Product Information
Electronic Chart Display & Information System (ECDIS)
Model
FMD-3005
The FMD-3005 is an advanced ECDIS that provides smooth chart display, intuitive operation, and multifunction capabilities. It supports integrated navigation by combining charting, radar overlay, sensor data, and alert management in a single compact system, ensuring safe and efficient vessel operation.
Product Details
FEATURES

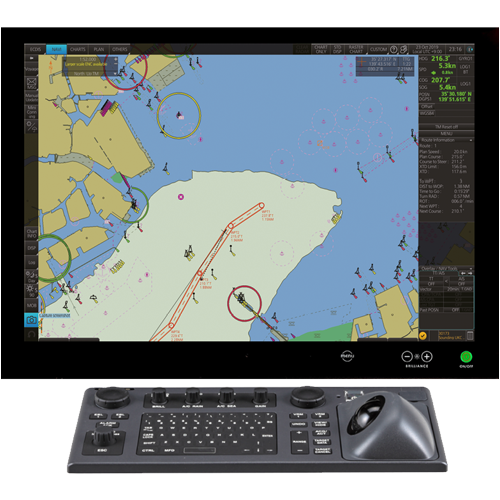

FURUNO Electronic Chart Display & Information System – FMD-3005
- Multifunction Display: Can operate as an ECDIS, Conning Information Display, Chart Radar, and Alert Management System.
- Smooth Chart Drawing: High-speed redraw for seamless display of navigation charts without latency.
- Wide Chart Compatibility: Supports IHO S-57/S-63 vector charts, Admiralty Vector Chart Service (AVCS), raster charts, and third-party chart services.
- Flexible Sensor Integration: Connects to GPS, gyrocompass, AIS, speed log, and other onboard sensors for integrated navigation data.
- Radar Overlay: When connected to compatible radar, supports overlay of radar targets on the electronic chart and route exchange.
- User-Friendly Interface: Operates via trackball, buttons, or touchscreen with intuitive menus, status bars, and instant access functions for efficient chart handling.
- Enhanced Safety Features: Provides alerts for shallow water, route deviations, and navigational hazards.
SPECIFICATION
| Cartography Supported | IHO S-57/S-63, Admiralty Vector Charts, Raster Charts, C-Map, Jeppesen |
| Display Modes | True Motion, Relative Motion, North-up, Course-up |
| Multifunction Roles | ECDIS, Conning Display, Chart Radar / Radar Overlay, Alert Management System |
| Sensor Interfaces | Direct serial I/O for navigation sensors; optional sensor adapters for larger sensor networks |
| Radar Integration | Radar overlay, target tracking, waypoint/route exchange with compatible radar |
| Compliance | IMO ECDIS standards, IEC standards for marine navigation systems |
