Product Information

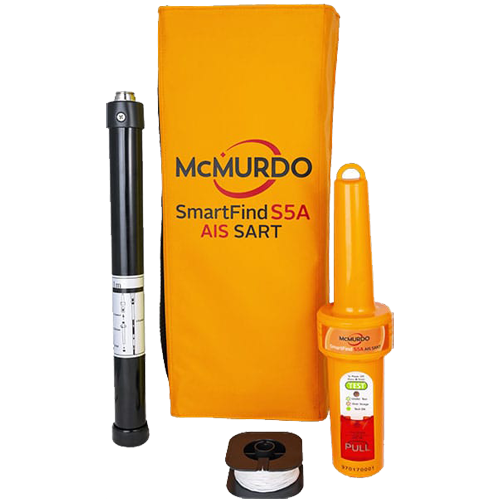

AIS Search and Rescue Transponder (AIS-SART)
Model
McMurdo SmartFind S5A
The SmartFind S5A is a next-generation AIS Search and Rescue Transponder designed to support fast and accurate survivor location during maritime emergencies. It automatically transmits AIS distress messages and precise GPS positions to nearby vessels and SAR authorities, enabling rapid detection on ECDIS, radar, and AIS displays. Compact, rugged, and fully compliant with IMO and SOLAS requirements, the S5A is built for reliable performance in severe marine environments.
Product Details
FEATURES
AIS Search and Rescue Transponder (AIS-SART) – McMurdo SmartFind S5A
- Buoyant and waterproof to 10m
- Compact, lightweight and rugged
- Meets IMO and GMDSS standards
- Over 96hrs continuous operation
- LED indication of activation
- Inbuilt test facility
- Integral lanyard
- Non hazardous battery
- 6 year battery life
SPECIFICATION
| Operating Frequency | AIS 1, 161.975MHz / AIS 2, 162.025MHz |
| Data Rate | 9,600bps |
| Bandwidth | 25 KHz |
| Power Output | 1W EIRP |
| AIS Message Type | Message 1, Message 14 |
| Modulation | GMSK |
| Antenna | Integrated by PCB |
GNSS RECEIVER
| Receiving Channels | 48 channels |
| Acquisition Sensitivity | (-)159 dBm |
| Tracking Sensitivity | (-)159 dBm |
| Position Accuracy | < 2.5 m Autonomous & SBAS |
