Product Information

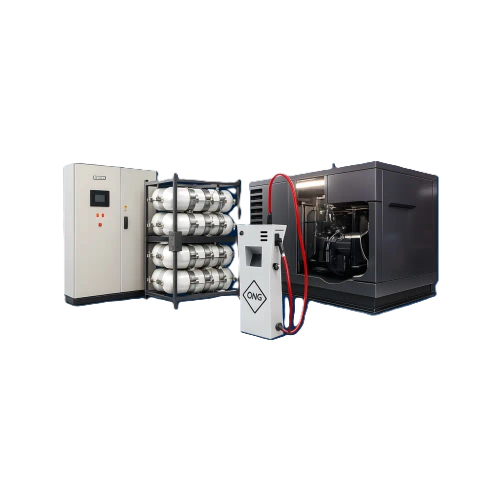

Bio - CNG Compressors (Gazpack Compressor Packages)
Model
GAZPACK 5 | GAZPACK 7 | GAZPACK 9 |...
The Gazpack series offers a range of modular compressor packages designed for various refueling needs. These units are contained within weatherproof acoustic enclosures and include compressors, gas recovery vessels, filtration, and control panels. The modular design allows for flexibility in installation and operation, making them suitable for different industries and applications.
Product Details
FEATURES
Bio - CNG Compressors (Gazpack Compressor Packages)
- Modular Plug-and-Play Design Each package is pre-assembled with compressor, filtration, controls, and recovery vessels, enabling fast installation and minimal site preparation.
- Weatherproof Acoustic Enclosure Heavy-duty enclosure protects equipment from harsh environments while reducing operational noise for safe indoor/outdoor operation.
- Multi-Industry Application Flexibility Suitable for CNG/LNG refueling, industrial gas processing, energy, utilities, and mobile gas systems.
- Integrated Gas Recovery System Built-in recovery vessels improve efficiency by minimizing gas loss during operation and system purging.
- Advanced Control & Monitoring Includes modern control panels with automatic sequencing, safety interlocks, alarms, and real-time performance monitoring.
- Scalable Series Options Multiple Gazpack series (5 to 120) provide a wide range of flow and pressure capacities to match different project requirements.
SPECIFICATION
- Weatherproof acoustic enclosure
- Fully integrated compressor module
- Gas recovery vessel included
- Multi-stage gas filtration system
- Electrical control panel with monitoring and alarms
- Configurable for refueling, industrial gas, and energy sectors
- Modular skid design for simplified transport & installation
- Suitable for indoor and outdoor operation
- Compatible with CNG, biogas, hydrogen, and industrial gases
- Built for continuous-duty, high-reliability applications
| Model | Operating Pressure | Volume Output | Motor output (kW) | Cooling | Suitable For |
| GAZPACK 5 | 250 - 350 Barg | 12 M³ /HR | 4 | Air Cooled | Forklift Trucks |
| GAZPACK 7 | 250 - 350 Barg | 21 - 36 M³ /HR | 11 - 15 | Air Cooled | Forklift Trucks |
| GAZPACK 9 | 250 - 350 Barg | 43 M³ /HR | 18.5 - 22 | Air Cooled | Forklift Trucks |
| GAZPACK 17 | 350 Barg | 60 - 125 M³ /HR | 37 | Water Cooled | Medium Sized Refuelling Stations |
| GAZPACK 37 | 250 - 350 Barg | 130 - 320 M³ /HR | 75 - 90 | Water Cooled | Medium Sized Refuelling Stations |
| GAZPACK 42 | 250 - 350 Barg | 21 - 36 M³ /HR | 75 - 150 | Water Cooled | Medium Sized Refuelling Stations |
| GAZPACK 50 | 250 - 350 Barg | 170 - 600 M³ /HR | 45 - 150 | AIr Cooled | Medium Sized Refuelling Stations |
| GAZPACK 70 | 250 - 350 Barg | 229 - 1028 M³ /HR | 75 - 250 | Air Cooled | Medium Sized Refuelling Stations |
| GAZPACK 60 | 250 - 350 Barg | 550 - 1600 M³ /HR | 90 - 250 | Water Cooled | Large Refuelling Fleet |
| GAZPACK 120 | 250 - 414 Barg | 65 - 125 M³ /HR | 45 | Air Cooled | Medium Sized Refuelling Stations |
