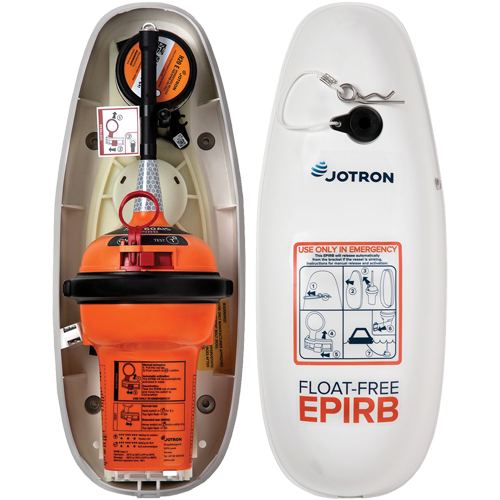

Emergency Position Indicating Radio Beacon (EPIRB)
New Performance Standard Emergency Position Indicating Radio Beacon.
EPIRBs are devices that send distress signals when a vessel is in a critical situation, notifying ground stations in each country about the emergency. Distress signals are transmitted to ground stations via Cospas-Sarsat satellites, enabling the identification of the vessel's name and the precise location of the distress signal with AIS and GNSS.
Product Details
FEATURES
Emergency Position Indicating Radio Beacon (EPIRB)
- Approved to the Latest EPIRB Standard: Fully compliant with IEC 61097-2 Ed.4 (April 2021), IMO regulations (as of July 2022), and SOLAS requirements.
- Dual Bracket Options: Float-Free Type (FB-60): Automatically releases upon water immersion using a water pressure sensor Manual Type (MB-60): Can be carried and manually deployed from lifeboats or life rafts.
- AIS Homing Technology: Enables faster localization by nearby vessels equipped with AIS receivers.
- Galileo RLS Ready: Compatible with the Galileo Return Link System for enhanced European GNSS tracking.
- IR LED for Night SAR: In addition to a regular LED light, the Tron 60AIS incorporates an infrared LED, allowing night vision-assisted search and rescue operations.
- Long Battery Life: Total operational and storage life of 11 years and 3 months ensures extended reliability.
- Global Approvals: MED, MER(UK), FCC, CSS, ANATEL, IC, and MLIT (Japan) type-approved.
- Compact & Rugged Design: Built for harsh marine environments with waterproof and impact-resistant construction.
SPECIFICATION
EPIRB Class: Class 2
EPIRB Category: Tron 60AIS/FB-60 EPIRB with Float-Free Bracket
Tron 60AIS/MB-60 EPIRB with Manual Bracket
Materials: Glass reinforced Polycarbonate
Compass Safe Distance: Standard: 0.80 m, Steering: 0.60 m
Cospas-Sarsat Transmitter: Frequency: 406.031 MHz
Output power: 5 W
Homing Transmitter: Output power: Up to 100 mW
Frequency: 121.5 MHz
Navigation Device: Supported GNSS constellations : GPS, GLONASS, Galileo
AIS Transmitter: Frequency: 161.975 MHz (AIS 1) 162.025 MHz (AIS 2)
Output Power: 1 W
Environment
Operating temperature: -20 ℃ to 55 ℃
Battery Operating Time: More than 48 hours at -20 ℃
Others
Standard Configuration: Tron 60AIS/FB-60 EPIRB with Float-Free Bracket
Tron 60AIS/MB-60 EPIRB with Manual Bracket
Dimensions
Tron 60AIS/FB-60
151 (W) x 153 (L) x 385 (H) mm
Tron 60AIS/MB-60
135 (W) x 135 (L) x 339 (H) mm
Weight
Tron 60AIS/FB-60
EPIRB: 0.7 kg Float-Free Bracket: 1.0 kg
Tron 60AIS/MB-60
EPIRB: 0.7 kg Manual Bracket: 0.15 kg
