Fleet Broadband
FELCOM251 is FURUNO’s latest Inmarsat FleetBroadband terminal, delivering ship-to-shore/ship-to-ship broadband communication of up to 432 kbps, anywhere at sea, by utilizing the inmarsat Fleet Xpress system coverage. The FELCOM251 brings cost-effective broadband communication onboard for both operational and social purposes, including calling friends and family back home while at sea.
Product Details
FEATURES

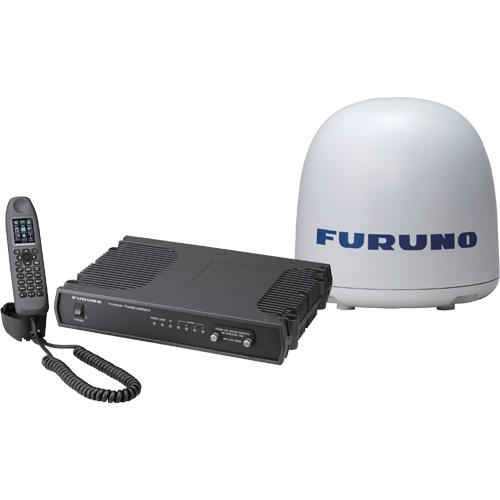

FURUNO FELCOM251
- Crystal clear voice telephony
- 4 kbps cost-effective, landline quality speech available
- Supports one circuit switched service at any one time
- Simultaneous use together with data communications
- High stability in communication links achieves constant network availability even under harsh environmental conditions
- Supports additional core voice and ISDN data capabilities for integration with legacy applications
- ISDN compatibility (available on FELCOM501)
- SMS (up to 160 characters) and voice mail
- Supports the Inmarsat Fleet Xpress system: Standard IP (Up to 432 kbps for FELCOM501), Streaming IP (Up to 256 kbps for FELCOM501), Satellite voice, Enhanced voice services, Crew calling, GSM calls, SMS, Safety, Fax.
- Noise suppression function to improve listening comfort in noisy environments
- Compact Communication Unit FB2001 for easy installation
- High level of security settings (IP Filter, Firewall)
- Remote Maintenance Available
- Ample connection interface for retrofitting with existing systems and components
- Conforms to the following standards: Inmarsat FleetBroadband SDM, IEC 60945 (Ed.4), IEC 60529 (Ed.2)
SPECIFICATION
- Communication Services:
Standard IP data service – up to 284 kbps (best-effort) with packet data support.
- Simultaneous Transmission:
Voice and data can operate at the same time.
- Voice Quality:
Satellite voice at 4 kbps (AMBE+2) or 3.1 kHz audio.
- SMS Service:
Short Message Service, supporting large message sizes.
- Transmitting Frequency:
1626.5–1660.5 MHz and 1668.0–1675.0 MHz.
- Receiving Frequency:
1518.0–1559.0 MHz.
- Interfaces:
• LAN – 4 × Ethernet 100Base-TX (RJ-45 with PoE)
• Analog telephone/telefax – 2 ports (expandable)
• USB – 1 × USB 2.0 (with optional RS-232 adapter)
• Alarm output – 1 port (contact closure)
• SIM Card slot – 1 slot
- Power Supply:
DC 12/24 V.
- Physical:
• Communication unit height: 258 mm
• Antenna diameter: 410 mm
• Weight: approx. 6.5 kg
- GPS:
Integrated GPS supported.
- Protocols:
Conforms to relevant marine communication standards and supports integration with existing navigation/communication systems.
