Product Information
VSAT
Model

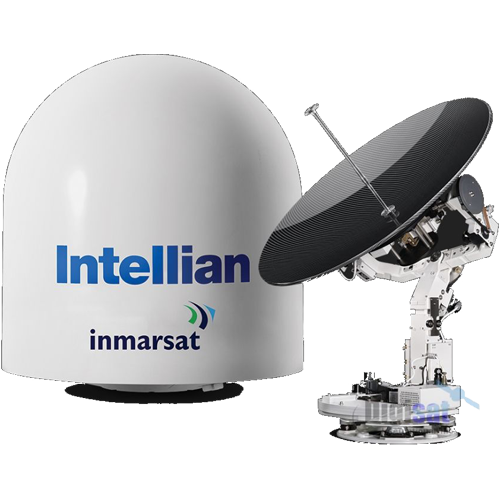

Intellian GX 100
The Intellian GX-100 is a 1m Ka-band maritime stabilized terminal, a ready-to-use system for the high speed, Global Xpress (GX) broadband service from Inmarsat. Built and supplied with an integrated Global Xpress modem the GX100 installs easily and delivers high-speed connectivity in no time.
Product Details
FEATURES
Intellian GX 100
- Fully integrated satellite terminal, including modem, providing out-of-the-box connectivity.
- Simple installation, including One Touch Commissioning.
- Download speeds up to 50Mbps and seamless worldwide coverage.
- Remote management and control using Aptus via direct Wi-Fi connection.
SPECIFICATION
- Antenna Type: 1 m Ka-band stabilized maritime VSAT terminal with integrated GX modem.
- Frequency Band: TX: 29.0–30.0 GHz | RX: 19.2–20.2 GHz (Ka-band)
- Radome Dimensions: Diameter: 138 cm | Height: 151.4 cm | Reflector Diameter: 103 cm
- Antenna Weight: Approx. 128 kg
- Stabilization & Tracking: 3-axis stabilization, unlimited azimuth, elevation −20° to +115°, cross-level ±37°
- Communication Interface: Below Deck Terminal with 8-port Ethernet switch, Wi-Fi, and management ports (Ethernet/USB/Serial)
- Power Requirement: AC 100–240 V, 50/60 Hz
- Remote Control: Wi-Fi and wired network control via Aptus software and embedded web server
- Commissioning: Automated One-Touch Commissioning for fast setup
