Display

Display Unit: 12.1" TFT color LCD

Pixel Number: 800 × 600

Fish Finder

Frequency: The synthesized transreceiver works with dual frequencies in 28 to 200 kHz

Transducer: 1, 2 or 3 kW

Range Scale: 5-3000 m

Pulselength & PRR: 20-3000 pulse/min

Display Modes: Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope

OTHERS

Waterproofing: IP55 (When flush mounted)

Power Supply: 12-24 VDC: 3.3-1.7 A

100/110/220/230 VAC

Size: 345 (H) x 356 (W) x 199 (D)

Weight: Bracket Mount: 8.2 kg, Flush Mount: 6.8 kg

Equipment List

Standard

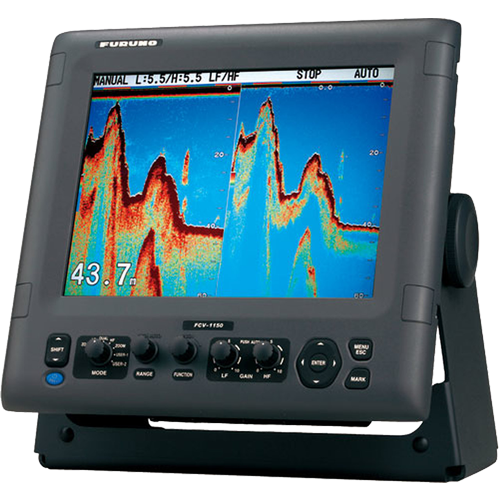

1. DISPLAY UNIT FCV-1150-E1 UNIT
2. STANDARD SPARE PARTS, INSTALLATION MATERIALS,
3. ACCESSORIES AND MANUALS1 SET

Option

1. 1 KW TRANSDUCER200B-5S (10 M): 28F-8, 50B-6 (10 M), 50B-6B (15 M), 50B-9B, 88B-8
2. 2 KW TRANSDUCER200B-8: 200B-8B, 28BL-6HR, 28F-18, 38BL-9HR, 50B-12, 50BL-12
3. 50BL-12HR, 82B-35R, 88B-10
4. 3 KW TRANSDUCER28BL-12HR: 28F-24H, 38BL-15HR, 50BL-24H, 50BL-24HR, 50F-24H, 68F-30H
5. 5 KW
6. TRANSDUCER200B-12H
7. 88F-126H
8. DUAL FREQUENCY TRANSDUCER: 50/200-1T (RUBBER)1 KW
9. 2P TWISTED PAIR CABLE5M、10M、15M
10. SIGNAL CABLE ASSEMBLY5M
11. ADAPTOR CABLE ASSY
12. THRU-HULL PIPENO.4: NO.5, NO.6 (2 holes), NO.7 (2 holes), NO.11 (2 holes)
13. RECTIFIER (CHINA)PR-62: (100 VAC/220 VAC)
14. SPEED/TEMPERATURE SENSOR: ST-02MSB (USA)10M
15. SPEED/TEMPERATURE SENSOR: ST-02PSB (USA)10M
16. TEMPERATURE SENSOR: T-02MSB10M
17. TEMPERATURE SENSOR: T-02MTB10M
18. TEMPERATURE SENSOR: T-03MSB10M
