Product Information
Fish Finder / Echo Sounder
Model
FURUNO FCV 688
The FURUNO FCV‑688 is a high-performance color LCD fish finder and echo sounder designed for professional fishing vessels. It features a 10.4" color TFT display with advanced digital signal processing for precise underwater detection. The unit supports dual-frequency operation, adjustable output power, and multiple display modes, making it suitable for various fishing conditions from shallow to deep waters.
Product Details
FEATURES

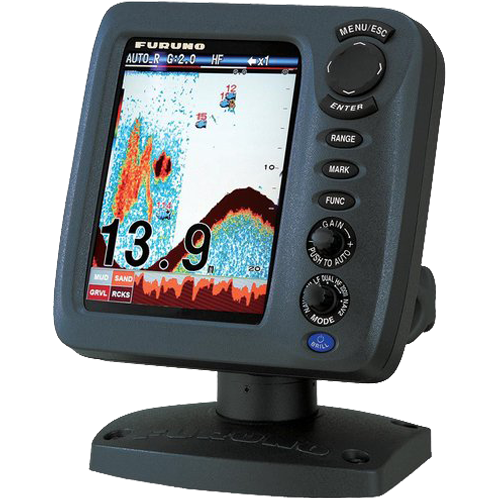

5.7" COLOR LCD FISH FINDER
- Equipped with Furuno’s latest technology: the Bottom Discrimination Function - Analyze bottom structure.
- ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology.
- White Line feature - Discriminate fish lying near the bottom.
- The top edge of the sea floor is displayed in white to clearly show structures. This feature helps to discriminate bottom fish distinctly.
- Configurable Alarm function (depth, fish echoes, etc.).
- Post-processing Gain Control applied to all echoes displayed on the screen.
- Share and display information on a chart plotter*.
- Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range).
SPECIFICATION
Product Specification
- Display Unit: 5.7" COLOR LCD FISH FINDER
- Pixel Number: 640 × 480 (VGA)
- Frequency: 50 and 200 kHz
- Transducer: 600 W
- Range Scale: 2–1200 m
- Pulse Length & PRR: 0.1–3 ms, Max 3,000 pulse/min
- Display Modes: Single frequency (50 or 200 kHz), Dual-frequency, Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock, Bottom discrimination, ACCU-FISH™
- Range Shift: Bottom-lock expansion: 2–10 m; Sectional expansion: 2–1200 m
- ACCU-FISH™: Yes
- Bottom Discrimination: Yes
- Waterproofing: IP55
- Power Supply: 12–24 VDC, 13 W
- Size (H × W × D): 207 × 170 × 132 mm
- Weight: Bracket mount 1.3 kg (2.9 lb)
Equipment List
Standard:
- Display Unit: CV-688E (for English), CV-688C (for Chinese)
- Installation materials and standard spare parts
Option:
- Speed/temperature sensor: ST-02MSB (Thru-hull, bronze), ST-02PSB (Thru-hull, plastic)
- Connector kit for connection of speed & temperature sensor or temperature sensor
- NMEA + Power cable
