IGNACORE Homecore
IGNACORE HomeCore PortaCore-5 is the Battery Energy Storage System used for especially residential purpose. This is a compact and efficient power backup and energy management solution designed to meet the everyday electricity needs of a household.
It stores electrical energy—typically from the utility grid or a rooftop solar system—and supplies reliable power during outages, peak demand periods, or when grid electricity is unavailable.
This system is well-suited for running essential home appliances such as lighting, fans, televisions, refrigerators, internet routers, and small air-conditioning units, ensuring uninterrupted comfort and convenience. By intelligently managing energy usage, a 5-kW energy storage system helps reduce dependency on the grid, improves energy efficiency, and supports the use of renewable energy
Product Details
FEATURES

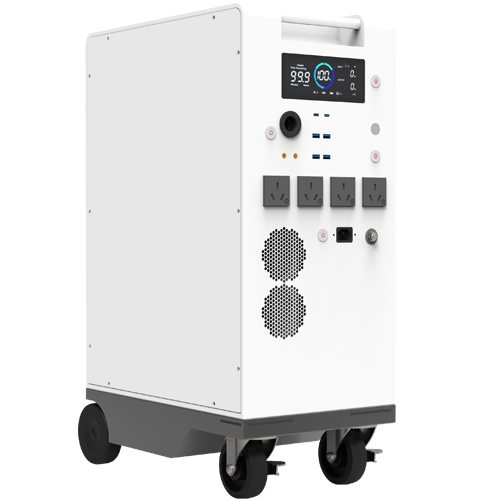

PortaCore-5
➊Battery Handle: Used for handling and pushing equipment
➋ Screen: Display the operational status of the product, such as SOC
➌ Type C 60W/100W Output: Can be used to charge most devices currently on the market at 65W/100W Max.
➍ DC Button: Turn on and off DC output
➎ 2xDC 12V/5A 0utput: Traditional ports for routers, cameras, old laptops, etc.
➏ 4xAC Output: Standard AC receptacle: widely used in areas that use 220V; generates almost same AC power as a household wall outlet
➐ AC Button: Turn on and off AC output
➑ Fuse Protect: Overload protection
➒ Grid AC Input: Can connect to grid for AC charging
➓ USB-C 60W/100W output: Quick charge USB-A ports
⓫ Light Button: Turn on and off light
⓬ Light: Lighting and emergency SOS rescue
⓭ Cart Outlet: Used for vehicle ignition and starting
⓮ Power Button: Turn on and off storage system
⓯ Solar Input: Can be connected to solar panels
SPECIFICATION
General
Weight :60Kg
Size :700*424*482mm
Working Temperature
Charging: 0~50℃
Quick charge
IP Level: IP20
Battery
Battery Voltage :51.2V
Battery Energy:5.12kWh
Cell Chemistry: LFP (Lithium Ferro Phosphate)
Life Span: 6000 Cycles
Battery Management System
Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection,
Over current Protection
Max. Charge Rated Up to 0.8C/80A, default setting 50A
Inverter
Rated AC Output Power :5000W/220Vac/50/60Hz
PV
MPPT Maximum Input Power: 5000W
MPPT Voltage Range: 120~450Vdc
Max PV charge current: 80A
Switch Time: ＜10 ms
Input
Charging Method AC Wall Outlet, Solar Panel
AC Charging Max.80A, default setting 50A
Solar Charging Max.80A, default setting 50A
Input Voltage Range 90~280Vac, Settable
Nominal voltage 220VAC (Settable: 208/220/230/240 Vac)
Output
AC Output Ports: 4×10A
USB-A :100W
USB-C :60W
Car Power Output: 12V/10A
DC output: 212V/5A
Type C Port: 2x100W
Smart Control
Connection: Bluetooth and Wi-Fi
App Remote Control: Yes
