IGNACORE Homecore
A 10kW energy storage system (ESS) is a powerful, versatile solution for homes and small businesses, storing energy in batteries for backup during outages, reducing peak grid reliance, and lowering bills, featuring smart controls, scalability, and reliable power for essential appliances, offering energy independence and sustainability.10kW output for high demand, with storage capacities around 10-20kWh, expandable for larger needs. Advanced software optimizes charging/discharging, monitors usage, and can offer grid services like peak shaving. Can charge from solar panels or the utility grid. Automatically switches to battery power during outages, providing uninterrupted electricity. Integrates inverter and battery in a single unit for compact, aesthetic installation.
Product Details
FEATURES

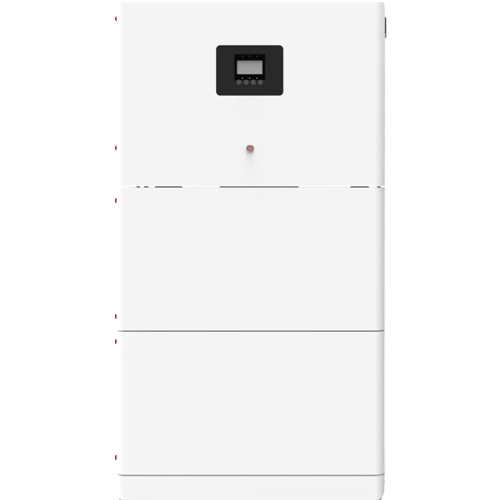

HomeCore-10/10
1) Battery Handle: Used for handling and pushing equipment
2) Screen: Display the operational status of the product, such as SOC
3) AC Button: Turn on and off AC output
4) Fuse Protect: Overload protection
5) Grid AC Input: Can connect to grid for AC charging
6) Power Button: Turn on and off storage system
7) Solar Input: Can be connected to solar panels
8) 1x 16A AC secondary output
9) Data logger & Monitoring: Integrated data logging function for recording energy generation, consumption, battery SOC, charging/discharging history, and fault events
10) Base: Protect the device from the direct contact of floor.
11) Communication Interfaces: RS485 / RS232 / CAN support for inverter-battery communication and remote monitoring integration.
12) Dual Output Capability (Main + Optional): Allows separation of critical loads and non-critical loads for longer backup duration.
13) Advanced Battery Management System (BMS): Real-time monitoring and protection against over-charge, over-discharge, over-current, over-temperature, and short-circuit.
14) Wall-Mounted Vertical Installation: Space-saving design with easy installation and maintenance access.
15)Safety & Protection Functions: Automatic protection for overload, short circuit, over-temperature, PV over-voltage, inverter faults, and battery anomalies.
16) Low Noise Intelligent Cooling System: Smart fan control ensures efficient heat dissipation with minimal noise.
17)Generator & Weak Grid Compatible: Stable operation with generators and under fluctuating grid conditions.
SPECIFICATION
General:
Battery type: LFP (SEMI-SOLID-STATE).
Cell Configuration: 1P*32S
Battery Capacity: 10kWh
Nominal DC Voltage (V): 102.4V
Rated Charge/Discharge rate: 0.5C
Cooling Mode: Smart Air-cooling with Air conditioner
Life cycles: 6,000
Lifespan: Designed for 15+ years
PV INPUT (DC):
Recommend max. PV input power: 10,000Wp
GRID OUTPUT:
AC Start-up Voltage/Auto Restart Voltage: 220/230/240VAC
Output Voltage Range: 195.5~253VAC
Nominal Output Current: 44.3A
Power Factor: >0.99
AC INPUT:
AC Start-up Voltage/Auto Restart Voltage: 120-140VAC/180VAC
Acceptable Input Voltage Range: 90-280VAC or 170-280VAC
Maximum AC Input Current: 50A
Nominal Operating Frequency: 50/60Hz
BATTERY MODE OUTPUT (AC):
Nominal Output Voltage: 220/230/240VAC
Output Waveform: Pure sine wave
Dimension: HXWXD (mm): 1296X648X203(mm)
Weight: 113Kg
