A 30 kW Energy Storage System (ESS) is a compact, yet powerful solution designed to help commercial facilities manage energy more efficiently, reduce electricity costs, and improve power reliability. It stores electrical energy and delivers it when demand is high or when grid power is unavailable.
For commercial applications such as offices, retail stores, schools, clinics, warehouses, and small manufacturing units, a 30 kW ESS provides an ideal balance between capacity, footprint, and cost. It can be integrated with the utility grid, on-site renewable energy sources (like solar PV), or backup generators.
Reduces maximum demand charges by supplying stored energy during peak hours.
Stores energy when tariffs are low (off-peak) and discharges when prices are high(peak). Ensures continuity for critical loads during outages.
Product Details
FEATURES

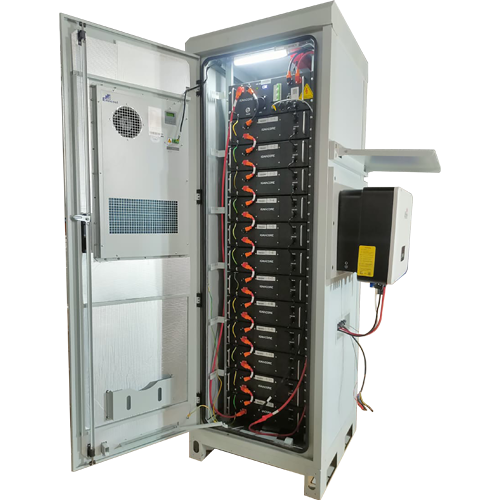

ComCore-30/60
- Smart Air cooler: Automatically turn on when the temperature exceeds 300C
- Fire extinguisher: Automatically spread fire extinguishing nano particles when the temperature exceeds 1700C.
- Data logger & Monitoring: Integrated data logging function for recording energy generation, consumption, battery SOC, charging/discharging history, and fault events.
- Fuse Protect: Overload protection.
- In-build Energy Meter: Measure the load consumption.
- Uninterruptible Supply: Delivers power within <10ms during grid or genset failure.
- Generator Reduction: Significantly reduces diesel genset runtime, saving on fuel and O&M costs.
- Peak Load Shaving: Discharges during peak demand hours to reduce charges and avoid penalties.
- Renewable Integration: Enables seamless integration of new or existing solar PV systems, storing excess energy.
- Improved Power Quality: Stabilizes voltage and frequency and filters out harmonics.
- Intelligent Power Management: Programmable for optimal power dispatch between grid, solar, and generators.
- Communication Interfaces: RS485 / RS232 / CAN support for inverter-battery communication and remote monitoring integration.
- Advanced Battery Management System (BMS): Real-time monitoring and protection against over-charge, over-discharge, over-current, over-temperature, and short-circuit.
SPECIFICATION
DC
Battery type: LFP SEMI-SOLID-STATE
Cell Configuration: 1P*192S
Battery Capacity: 60kWh
Nominal DC Voltage (V): 614.4V
Rated Charge/Discharge rate: 0.5C
Cooling Mode: Smart Air-cooling with Air conditioner
Life cycles: 10,000
Lifespan: Designed for 20+ years
Charging time: 2.34 Hours
AC (On-grid)
Rated Power: 30kw
Rated current: 43.5A
Rated Voltage: 400V
Input (PV)
Max. PV Input Voltage: 850V
Max, PV Input current: 32A+32A
Max. PV Input Power: 19.2kw+19.2kw
MPPT Voltage Range: 200V-830V
Display LCD
BMS Communication: RS485 OR CAN
EMS Communication: RS485
General Data
Operation Temperature: -30°C ~ +55°C
Protection Degree: IP54 (outdoor use)
Noise Emission: <70dB
Max. Operating Altitude: 5000m (derating above 2000 m)
Relative Humidity: 0 ~ 95% (non-condensing)
Output Waveform: Pure sine wave
Dimension: HXWXD (mm): 2250X1170X924(mm)
Weight: 800Kg Approx.
