Product Information

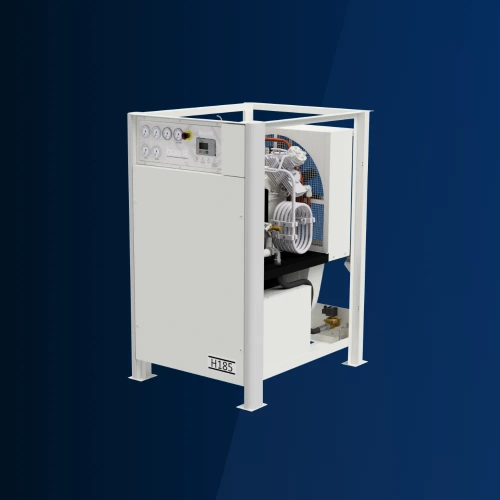

Nitrogen Booster Compressors
Model
H075 | H110 | H150 | H185
Reavell’s high-performance nitrogen boosters designed for maximum efficiency and minimum nitrogen loss.
The Reavell Boost series includes four nitrogen booster models engineered to match a wide range of flow and pressure requirements. Whether you’re feeding a small nitrogen generator or powering a high-throughput laser line, Boost delivers.
All units are air-cooled, oil-lubricated piston compressors with integrated PLC logic, full-stage pressure monitoring, and low-energy start-up systems.
Product Details
FEATURES
Nitrogen Booster Compressors
- High-Performance Air-Cooled Boosters All models feature air-cooled, oil-lubricated piston technology designed for continuous, energy-efficient operation with minimal nitrogen loss.
- PLC-Integrated Intelligent Control System Includes advanced logic control, automatic shutdown protections, pressure interlocks, and full-stage pressure monitoring.
- Low-Energy Star/Delta Startup Reduces electrical load on startup, enhancing system life and lowering operating cost.
- Precision Pressure & Flow Control Engineered to deliver stable outlet pressure up to 350 barg with best-in-class flow capabilities for small to heavy-duty applications.
- Noise-Reduced Enclosed Design Fully enclosed acoustic casing ensures quieter operation suitable for workshops and industrial environments.
- CE-Certified Safety & Reliability All units are CE-compliant and optimized for safe, long-term operation.
SPECIFICATION
| Model | Power | Max Flow | Inlet Pressure | Outlet Pressure | Best For |
| H075 | 7.5 kW | 25.9 M³ /Hr | 3.5 – 16 barg | 120 – 350 barg | Entry-level systems, autoclaves |
| H110 | 11 kW | 32.1 M³ /Hr | 3.5 – 16 barg | 120 – 350 barg | Component testing, laser cutting |
| H150 | 15 kW | 46.9 M³ /Hr | 3.5 – 16 barg | 120 – 350 barg | Fire suppression, mid-size lines |
| H185 | 18.5 kW | 50.8 M³ /Hr | 3.5 – 16 barg | 120 – 350 barg | HP moulding, nitrogen storage fill |
