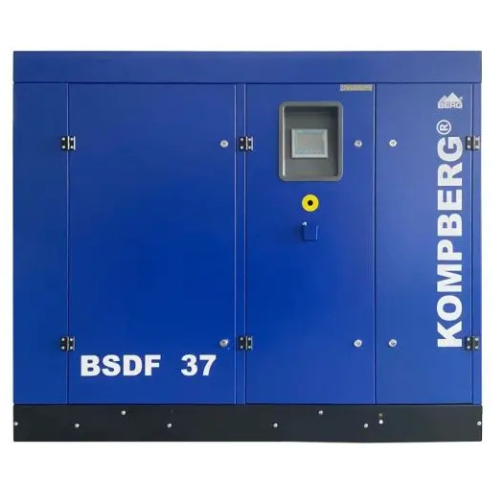

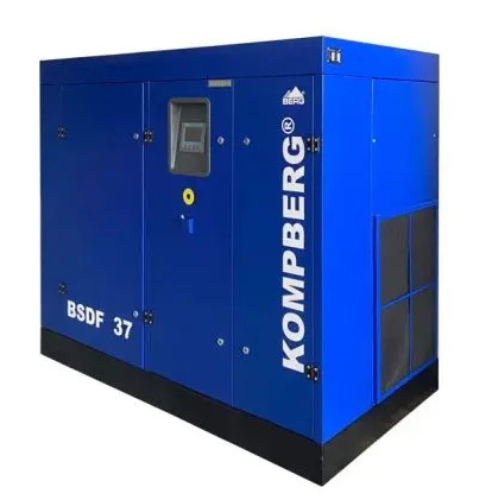

Screw Compressors – KOMPBERG® BSDF Series (22 – 250 kW)
Model
KOMPBERG® BSDF Series - BSDF 22, BSDF 30...
BERG compressors of the BSDF series from 22 to 250 kW are based on the BERG standard BSD series. The BERG Frequency Control compressors are exceptionally efficient variable speed screw compressors. The large, slow-running Air-end with energy-saving CMC controller and German branded inverters offer outstanding performance over the entire control range.
All models of BSDF Compressors can be maintained 100% without additional maintenance.
Ultimate Efficiency with our BSDF significantly increases reliability and durability, direct drive reduces the number of components required compared to the gearbox and eliminates the associated transmission losses. Sound levels are also significantly lower.
Product Details
FEATURES
Screw Compressors – KOMPBERG® BSDF Series (22 – 250 kW)
- High-Efficiency Rotary Screw Technology: Advanced screw element with optimized airflow ensures maximum output, low energy usage, and stable continuous-duty performance.
- Direct-Drive Power Transmission: Direct-drive motor system eliminates belt losses, increases efficiency, and reduces maintenance requirements.
- Low Noise Operation: Engineered with noise-reduction housing and precision components to maintain quiet operation between 70–85 dB.
- Robust Industrial Build: Heavy-duty design, long service intervals, and reliable operation suitable for harsh industrial environments.
- Wide Capacity Range: Available from 22 kW to 250 kW with multiple pressure levels (7.5, 10, 13 bar) to meet diverse operational needs.
SPECIFICATION
| Model | Capacity (m³/min) | 10 bar | 13 bar | Dimensions (L×B×H) (mm) | Power Transmission | Noise Level (dB) | Motor Power (kW) | Air Connection |
| BSDF 22 | 0.9 – 3.7 | 0.9 – 3.1 | – | 720×1300×1460 | Direct drive | 70 | 22 | G 3/4 |
| BSDF 30 | 1.7 – 5.3 | 1.5 – 4.4 | 1.2 – 3.3 | 1750×900×1450 | Direct drive | 75 | 30 | G 1 1/2 |
| BSDF 37 | 1.6 – 6.4 | 1.6 – 5.4 | 1.6 – 4.8 | 1750×900×1450 | Direct drive | 75 | 37 | G 1 1/2 |
| BSDF 45 | 2.4 – 7.7 | 2.5 – 7.0 | 2.0 – 5.8 | 2000×1000×1640 | Direct drive | 75 | 45 | G 1 1/2 |
| BSDF 55 | 2.6 – 9.9 | 2.5 – 8.5 | 2.3 – 6.6 | 2000×1000×1640 | Direct drive | 75 | 55 | G 1 1/2 |
| BSDF 75 | 4.6 – 13.6 | 3.6 – 12.3 | 3.5 – 9.4 | 2100×1030×1670 | Direct drive | 75 | 75 | G 2 |
| BSDF 90 | 4.6 – 16.2 | 4.2 – 13.6 | 3.4 – 11.4 | 2550×1485×2130 | Direct drive | 83 | 90 | G 2 |
| BSDF 110 | 9.6 – 19.2 | 8.4 – 16.9 | 7.0 – 14.1 | 2550×1485×2130 | Direct drive | 83 | 110 | G 2 |
| BSDF 132 | 11.5 – 23.0 | 10.2 – 20.5 | 8.3 – 16.5 | 3300×1600×1800 | Direct drive | 83 | 132 | G 2 1/2 |
| BSDF 160 | 15 – 30 | 12.3 – 24.5 | 11.3 – 22.6 | 3300×1600×1800 | Direct drive | 83 | 160 | G 2 1/2 |
| BSDF 200 | 17.3 – 34.6 | 15.5 – 31.0 | 13 – 26.1 | 4000×2100×2200 | Direct drive | 85 | 200 | DN 100 |
| BSDF 250 | 20 – 40 | 18 – 36 | 15 – 30 | 4000×2100×2200 | Direct drive | 85 | 250 | DN 100 |
